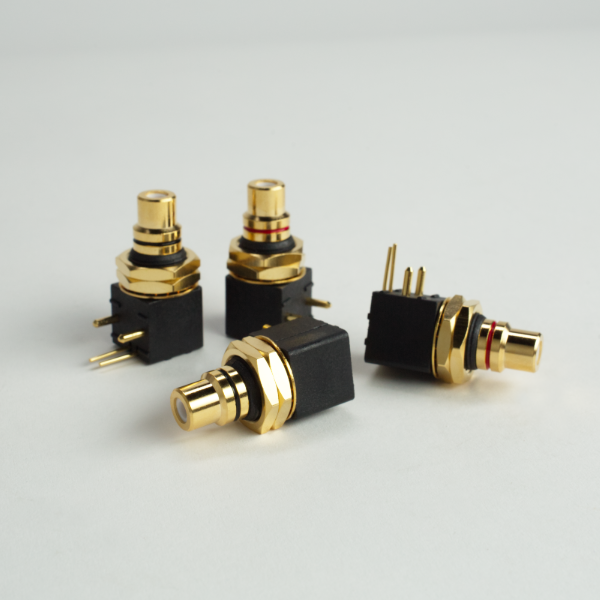

High quality, single piece, gold plated RCA connectors to fit our universal SUT PCBs.
Each order comes with 2 x black and 2 x red RCA.
MC1 Load Calculator
Optimise your moving coil cartridge loading
Results
Required Resistor (Theoretical):
N/A
MC1 Resistor:
N/A
MC1 Input Z:
N/A
Voltage Gain:
N/A
Output Voltage:
N/A
Instructions
- Select your transformer model and step-up ratio
- Enter your phono input impedance (default is 47kΩ)
- Enter the desired load impedance for your cartridge
- Optionally enter cartridge specs for gain predictions
- Click Calculate for loading recommendations
Notes:
When the desired load is below 40 Ω, you’ll see an advisory suggesting a primary-side load. Calculations still run normally.
"No resistor required" - Phono input already provides suitable load
