Does the Denon DL-103 need a step-up transformer?

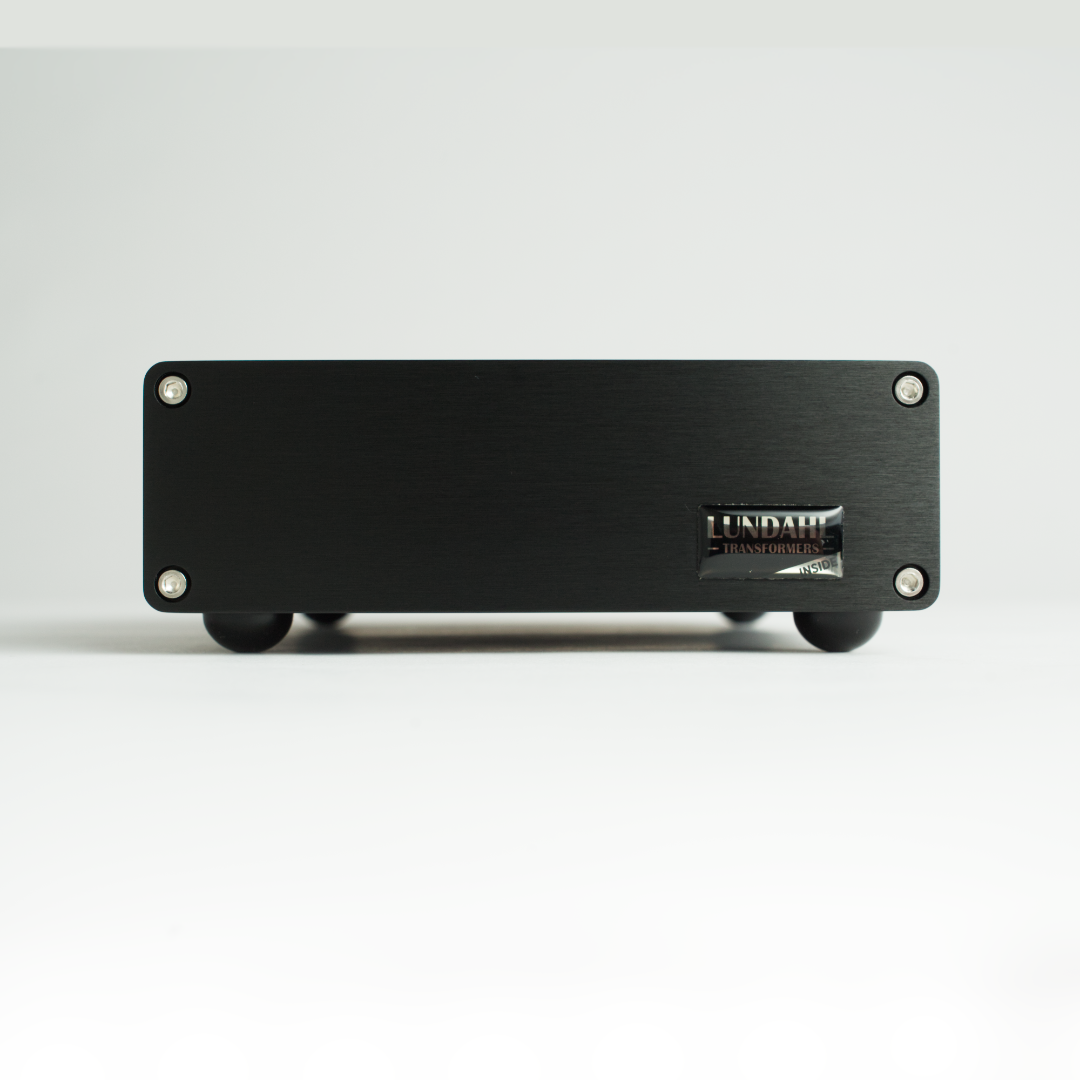

Yes. The DL-103 is a low-output moving coil cartridge (~0.3 mV) and benefits from a moving coil step-up transformer (MC SUT) to raise voltage and improve signal-to-noise before a moving magnet phono stage. Our MC1 moving coil step-up transformer preamp is voiced and configured to pair well with cartridges like the DL-103.

What SUT ratio works best for the Denon DL-103?

A 1:10 MC SUT is a versatile starting point for the DL-103, balancing gain and loading for many systems. We offer the Lundahl LL9226XL at 1:10 inside the MC1. Some systems may prefer a touch more gain (e.g., 1:15) depending on phono stage sensitivity and overall headroom.

What load impedance should I target with a DL-103 and SUT?

Denon recommends 100 Ω or higher at the cartridge. With a 1:10 SUT into a 47 kΩ MM input the reflected load is ~470 Ω; many listeners prefer additional secondary loading to bring the cartridge load closer to ~100–200 Ω. Use our SUT Load Calculator to trial ratios and loads for your setup.

Can I use an active MC stage instead of a step-up transformer?

You can, but many DL-103 users prefer a transformer for its low noise floor and natural presentation. An MC SUT (like the MC1) provides passive voltage gain and simple, predictable loading. If you already own an active MC stage, compare both approaches and choose the presentation you prefer.

Do I need a step-up transformer for a Denon DL-103?
