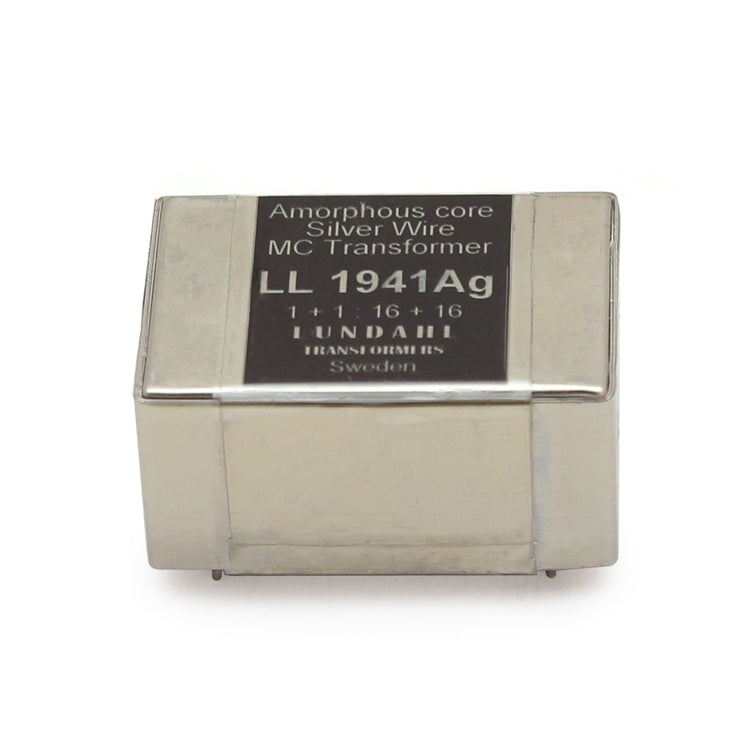

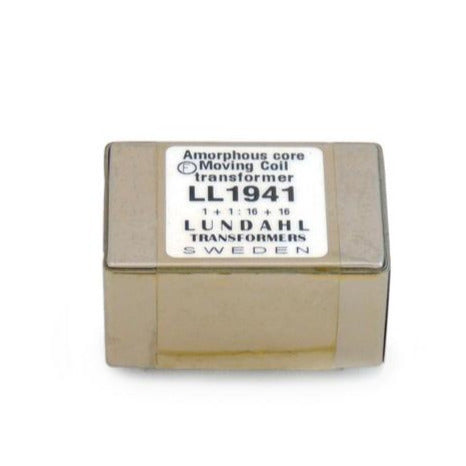

Purchase 2 x LL1941 and recieve a free project PCB. The LL1941 is a high turns ratio, high performance moving coil step-up transformer for turns rations of 1:16 and 1:32.
The transformer combines Lundahl's unique uncut amorphous colbalt core and their dual coil structure with Cardas high purity copper wire in an oversized design. The objective is to provide the best possible MC transformer, cost no object.
Wire
Available with copper or silver wire.
PCB
LL1941 comes with a free HASL PCB for your projects, or purchase a premium ENIG Gold PCB for an extra £20.
RCA Sockets
If you require RCA sockets for the PCB select yes, we will include high quality gold plated RCAs with your order for an extra £15.
Order
Most transformers are made to order and incur a 4-8 week winding time, we do stock some popular models in which case your order will be shipped immediately.
If you have any questions about this product or need some help with your design please contact us.
MC1 Load Calculator
Optimise your moving coil cartridge loading
