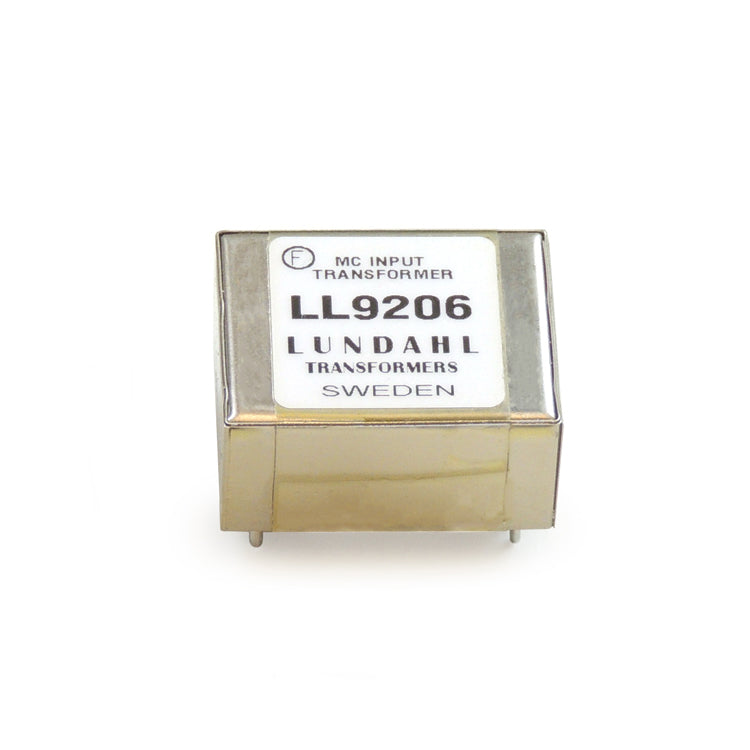

LL9206 Lundahl Moving Coil SUT

PCB: Standard
£68 £81.60 Inc. VAT


Purchase LL9206 and recieve a free project PCB. LL9206 is an input audio transformer for moving coil pickups. The transformer is built up from two coils, each coil with one secondary winding surrounded by two primary windings. This structure results in an excellent frequency response. All winding ends are available on the pins. Thus, the transformer can be used with a set of different turns ratios.


LL9206 comes with a free HASL PCB for your projects, or purchase a premium ENIG Gold PCB for an extra £20.


Most transformers are made to order and incur a 3-5 week winding time, we do stock some popular models in which case your order will be shipped immediately.

If you have any questions about this product or need some help with your design please contact us.
